Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage

  • Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage
  • Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage
  • Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage
Plaats van herkomst China, Zhejiang
Merknaam Winston/OEM
Certificering CE,ROSH
Modelnummer MSF - 20
Min. bestelaantal 1PCS
Prijs USD4.84
Verpakking Details Doos van het de uitvoer de standaardkarton
Levertijd 3-15days na krijg betaling.
Betalingscondities T/T, L/C, Paypal, Online Betaling, RMB/USD
Levering vermogen 10000PCS/Month
Productdetails
Garantie 2 jaar OEM Ja
ODM Ja Voorwaarde Originele nieuwe
Gewicht 0.19kg Een uitgang macht 20w
BEDRIJFSTEMPERATUUR -10℃~+50℃
Laat een bericht achter
Productomschrijving

Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage




Technique parameter:


     Model MSF-20-5 MSF-20-12 MSF-20-15 MSF-20-24
DC output voltage current 5V 0-4A 12V 0-2A 15V 0-1.6A 24V 0-1A
Wave and noise 50mVp-p 50mVp-p 50mVp-p 50mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 68% 71% 72% 75%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 85-264VAC 120-370VDC 47-63Hz
Inpact current Cold start current 30A/230VAC
Overload proctection 105%-135% cut off the output, automatic recovery
Over-voltage protection
Setup rise hold up time 200ms, 50ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Dimension 97*58*25mm
Packing 28.5*21.6*32cm/100PCS/19kg


Product Picture

Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage 0

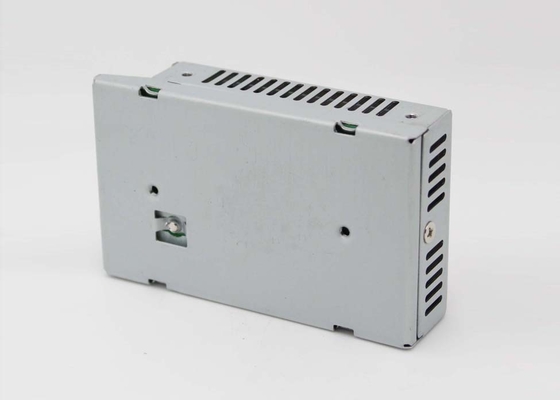

Dimensions

Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage 1


The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
